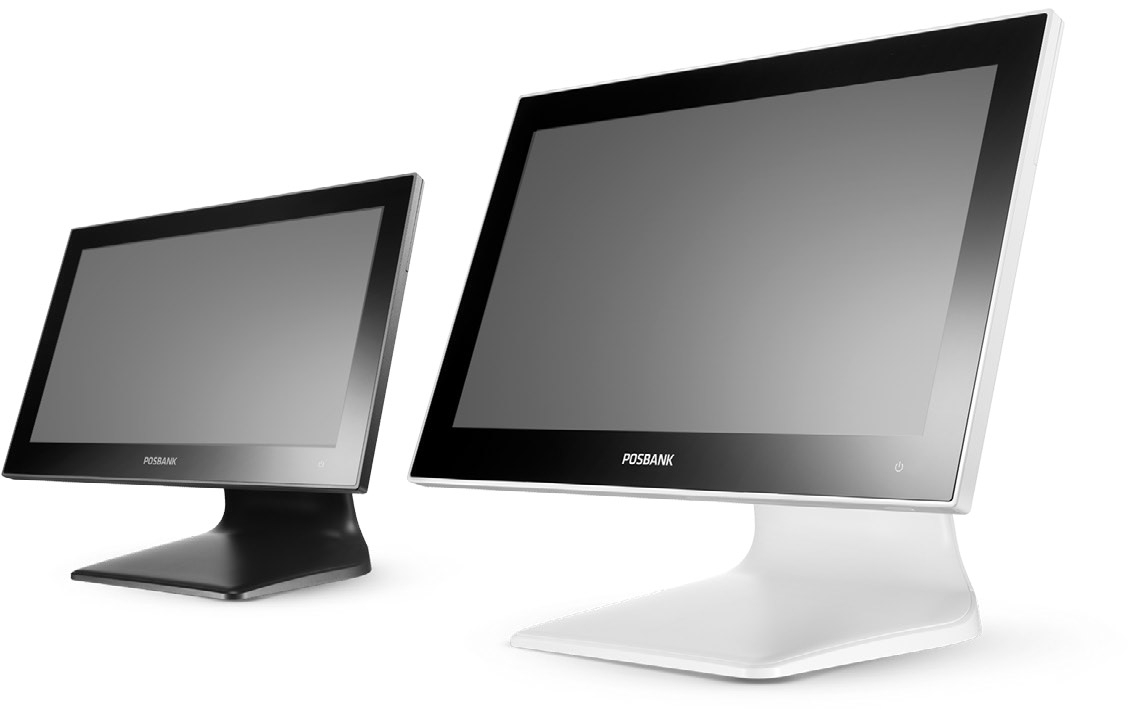

Sistem POS All-in-one APEXA GT 1500

SISTEM

Procesor

Intel® Celeron® J3455 (2M Cache, 2.3 Ghz, 4 Cores)

Chipset

7200U/4415U Intel® Kaby Lake

J3455 Intel® Apollo Lake

Memorie

7200U/4415U 4GB Standard, DDR4L 2133 MT/s, Socket 1 x SODIMM (Max. 32GB)

J3455 4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM

Spatiu stocare SATA 3 (6Gb/s) 2.5 inch 128 GB, support AHCI

Sistem operare OS License Windows 10 Iot Enterprise 2019 LTSC Entry

Audio Realtek ALC662-VD

DISPLAY

Tip 15" TFT LCD, LED Backlight

Rezolutie1024 x 768

Luminozitate 300 cd/m² (typ.)

Touchscreen Projective Capacitive Touch

INTERFATA

Display 1 x VGA (With Power Output)

USB

6 (Rear 2, Back 4, USB 3.0 x 2, USB 2.0 Touch Controller / Camera), RJ-45

3 (Reserved for MSR, SCR, i-Button / T)

Serial

3 x Serial Port

3 x Dedicated for Accessories

LAN 1 x Gigabit Ethernet, RJ-45

Audio 1 x Line-out

Power DC-IN

7200U/4415U 1 x (3 Pin connector)

J3455 1x (4 Pin Connector)

Slot Extensie Mini PCIe, m-SATA

POWER

Alimentare

7200U/4415U Adaptor 24V, 2A/24V, 4A ( Powered USB Option)

J3455 Adaptor 12V, 5A

Physical & Environmental

Temperatura de operare 0 °C ~ 60 °C at 10% to 90% Humidity

Temperatura depozitare -20 °C ~ 80 °C at 10% to 90% Humidity

Dimensiuni (W x H x D) 364 x 333 x 210 (mm), 14.3 x 13.1 x 8.2 (in)

Dimensiuni Pachet (W x H x D) 500 x 470 x 300 (mm), 19.6 x 18.5 x 11.8 (in)

Greutate Neta 5,300g, 11.6lbs

Greutatea pachet 8,000g, 17.6lbs

Certificari CE, FCC, KC, CB, CCC

Culoare Matte Dark Grey, High Gloss White

Optiuni & Periferice

2nd Displays 9.7", 12.1", 15" LCD Display, 1024 x 768, Optional Touchscreen

Client Display VFD, 20 Columns x 2 Lines

/O Expansion

1 x COM5 (RJ-45 8 Pins) (Factory Option)

1 x Cash Drawer Port (Factory Option)

1 x Powered USB (24V)

Stocare 2.5 inch SSD 128GB, 256GB, HDD 500GB, 1TB

Cititor banda magnetica Comply with ISO 7811, Support 1 & 2 & 3 Track

Cititor Smart Card EMV Level 1, 2

Dallas Dallas i-button Reader

Amprenta Digitala DA

Kit Montare Perete VESA-Compatible, 75 x 75 (mm), 100 x 100 (mm)

Cablu de conversie serial RJ-45 to D-sub 9

Boxe 2 x 0.8W (Stereo)

WiFi WLAN (802.11 a/b/g/n), On-board [Factory Option]
