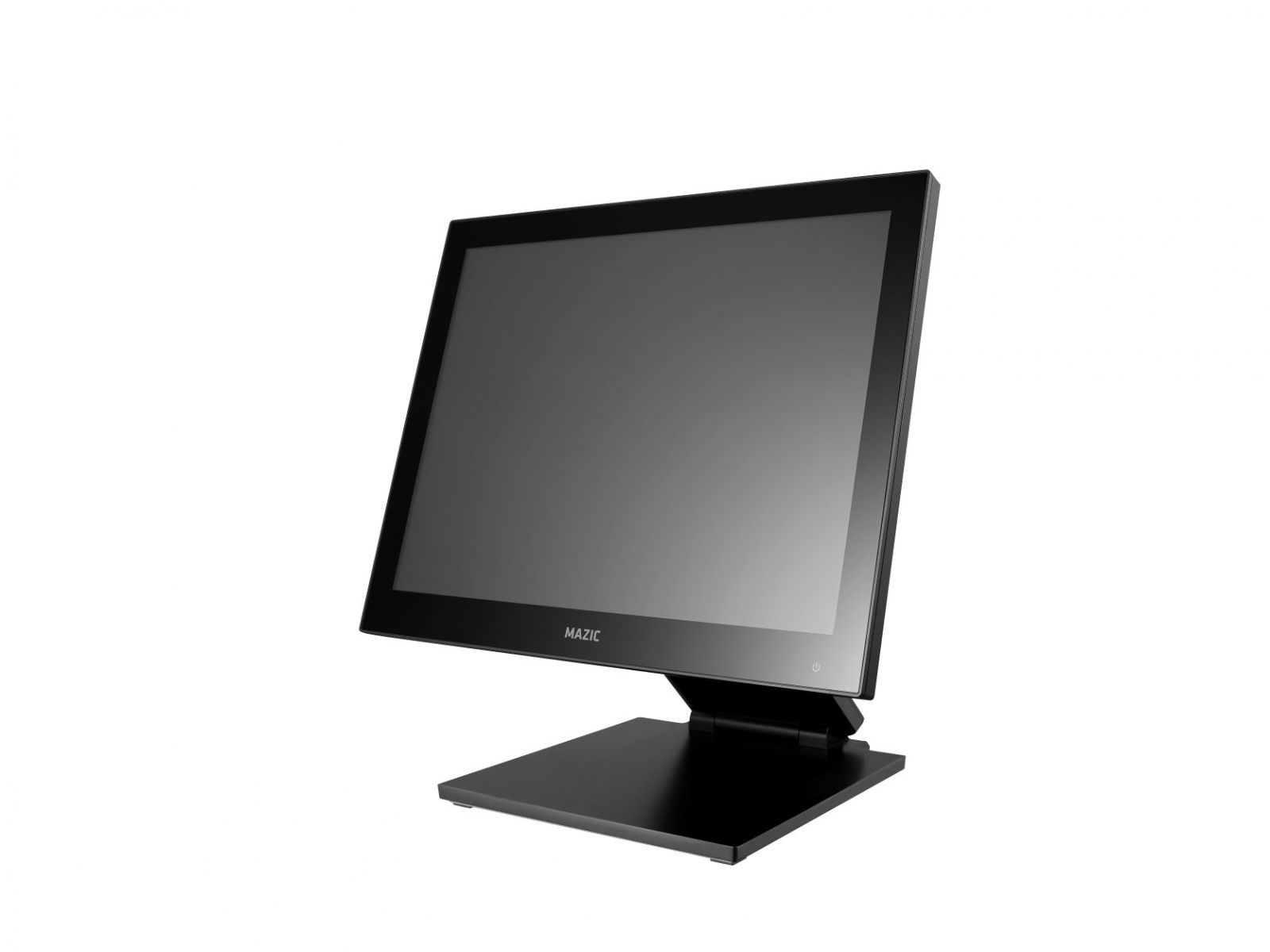

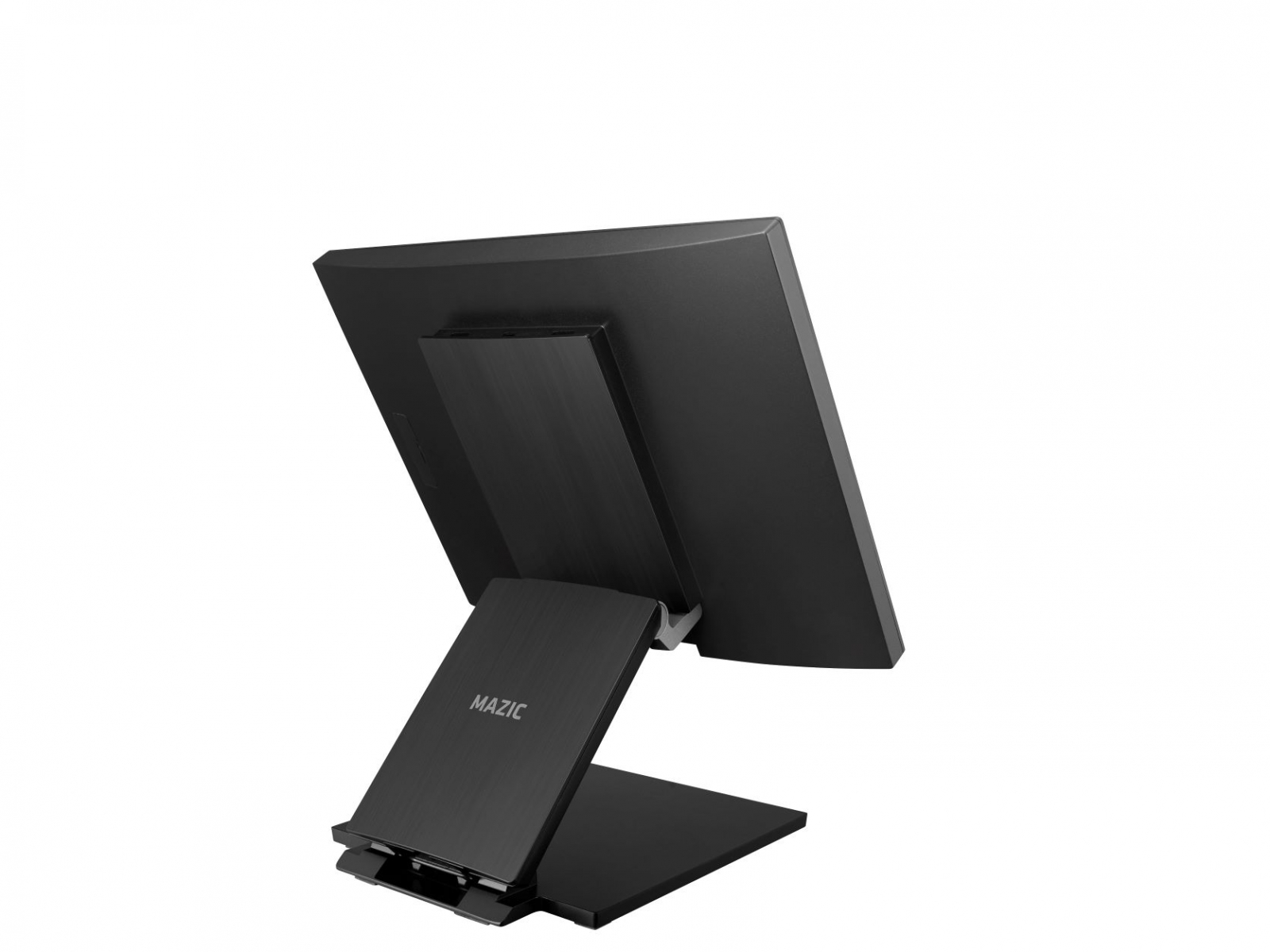

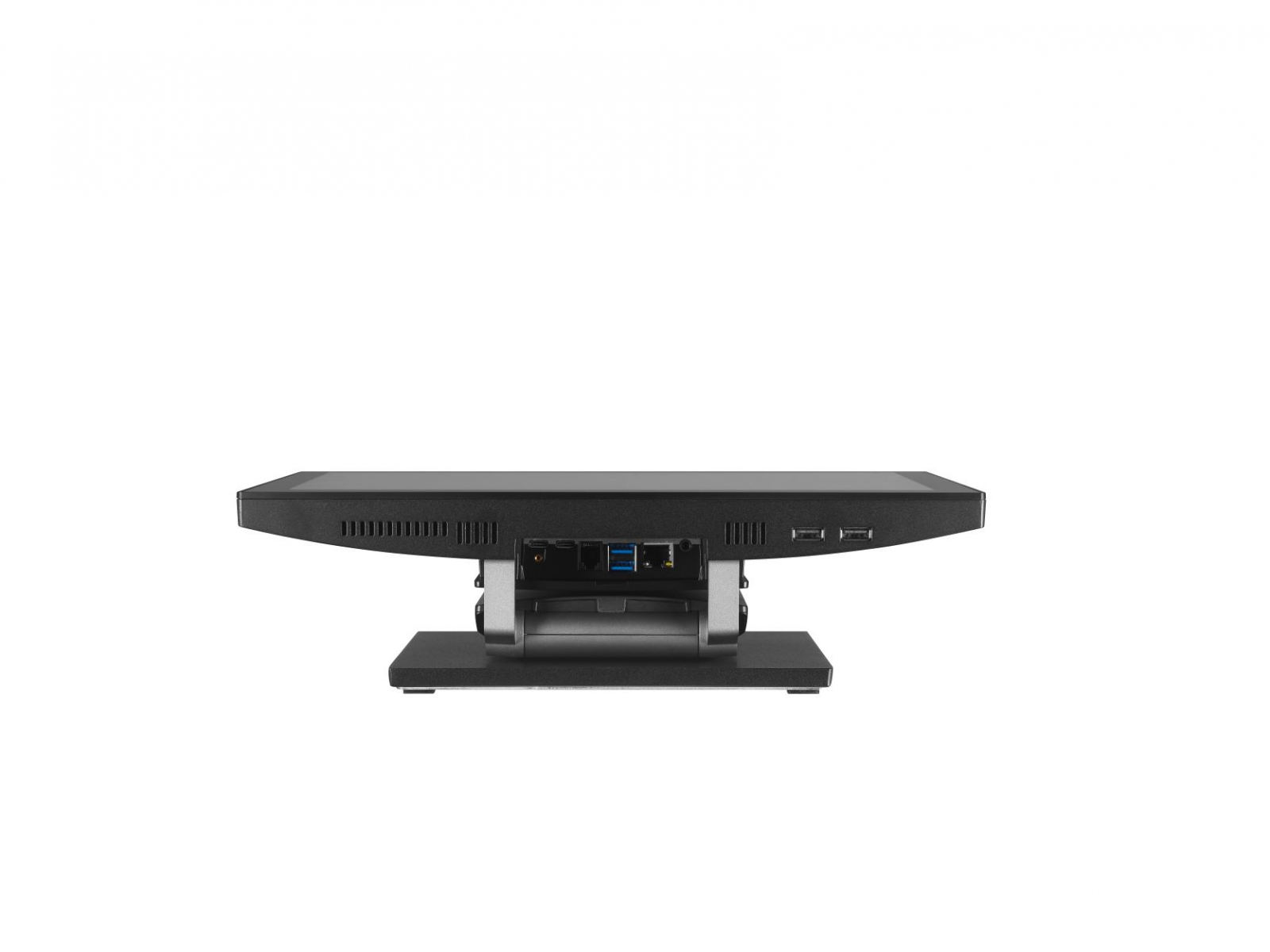

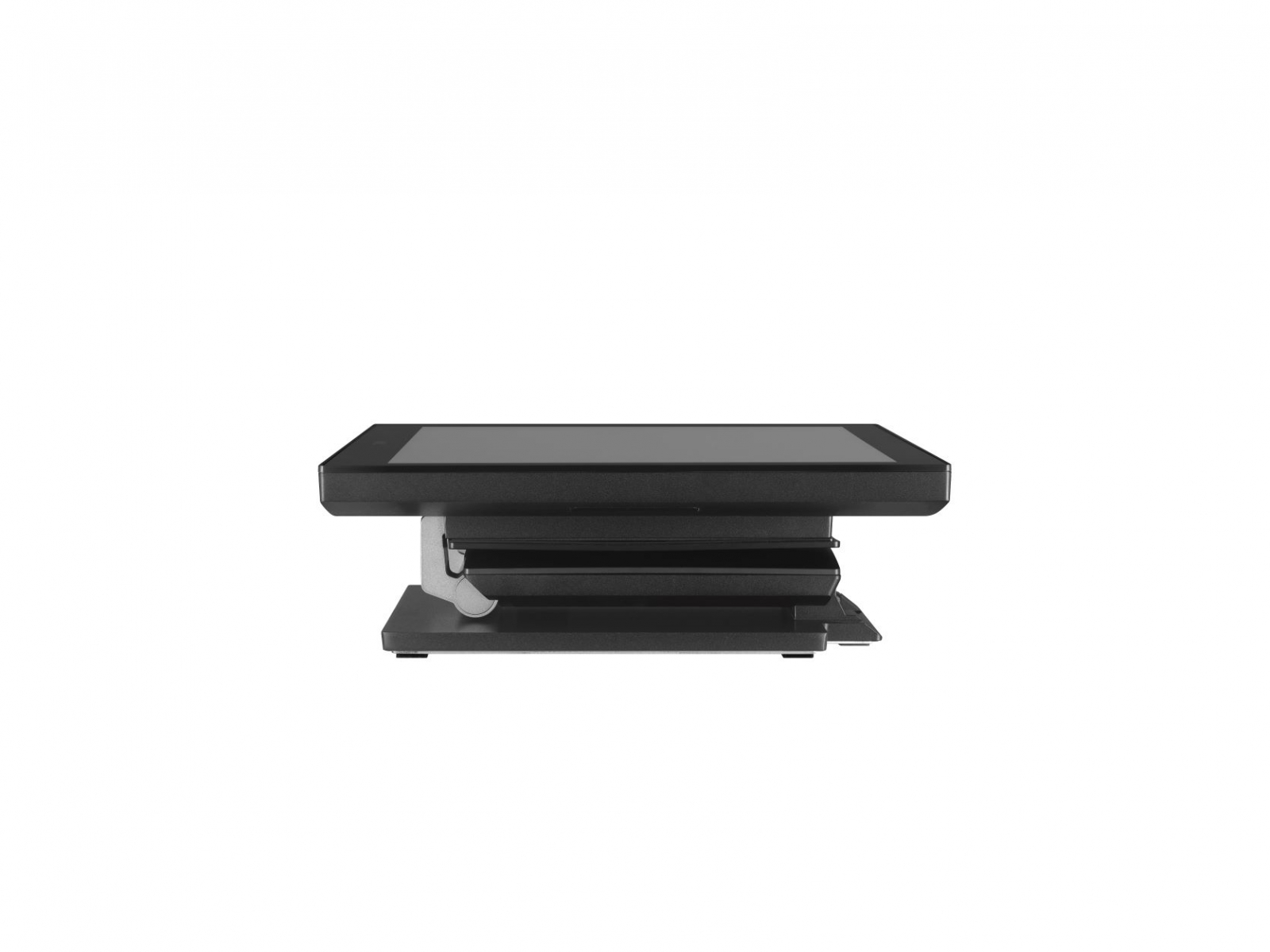

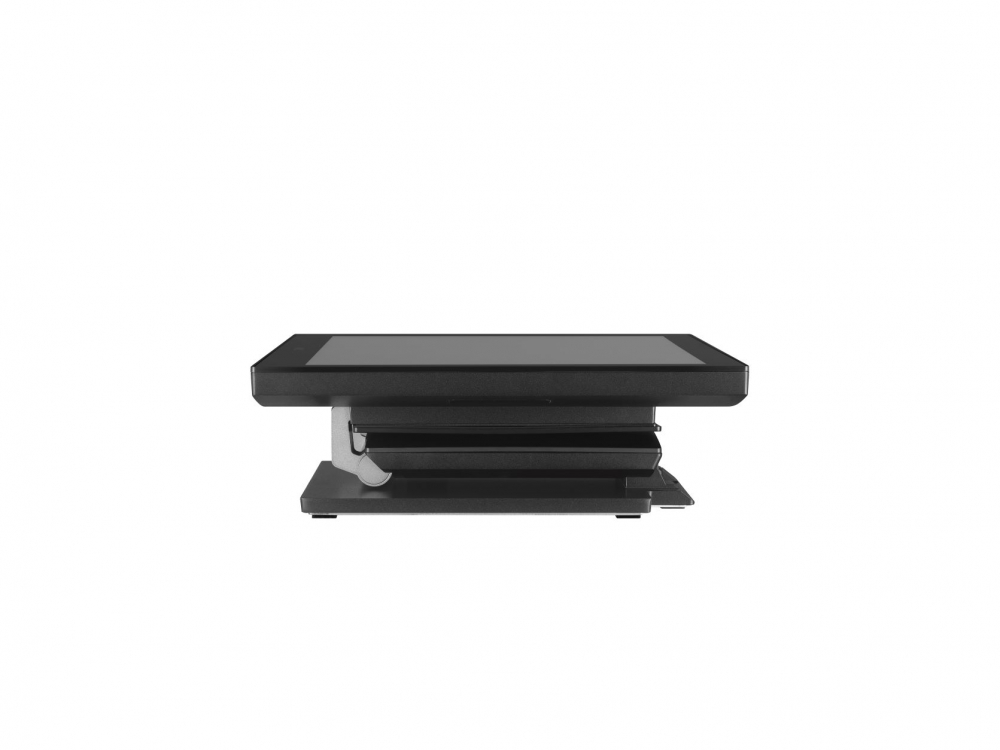

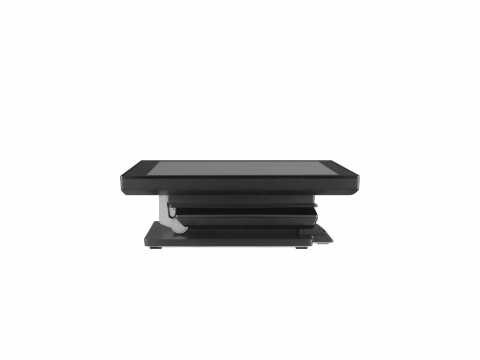

Sistem POS all-in-one MAZIC GW-1560, POSBANK (9076)

SISTEM

Procesoare

Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz, 4 Cores)

Chipset

7200U/7100U/3965U Intel® Kaby Lake

J3455 Intel® Apollo Lake

Memorie

7200U/7100U/3965U 4GB Standard, DDR4 2133 MT/s, Socket 1 x SODIMM (Max. 16GB)

J3455 4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM

Capacitate

NVME M.2 128G

RAID

7200U/7100U RAID 0,1 (SATA Only)

Sistem de Operare

Windows 10 IoT Enterprise NU ESTE INCLUS IN PRET 389 RON TVA INCLUS

Audio

HD Audio Codec

DISPLAY

Tip

15.6" TFT LCD, LED Backlight

Rezolutie

1366 x 768

Luminozitate

400 cd/m² (typ.)

Touchscreen

Projected Capacitive Touch, AF

INTERFATA

Display

1 x Display port (USB-C)

USB

5 (Rear 5, USB 3.0 x 2,USB 2.0 x 2, USB C type x 1)

3 (Reserved for MSR, SCR, i-Button/Touch Controller)

Serial

2 (COM 1 reserved MSR/SCR, TX/RX only)

(COM2 reserved CDP, TX/RX only)

Port Sertar de bani

1 x RJ-11 (Integrated circuit GPIO)

LAN

1 x Gigabit Ethernet, RJ-45

Audio

1 x Line-out

Extension Slot

M.2 for Wi-Fi/BT

ALIMENTARE

Sursa alimentare

Adaptor 12V, 5A(C-Type Plug) / 24V, 6.35A (3Pin DIN Plug) (I/O BOX Option)

ALTE SPECIFICATII:

Temperatura de operare

0 ℃ ~ 60 ℃ at 10% to 90% Humidity

Temperatura de depozitare

-20 ℃ ~ 80 ℃ at 10% to 90% Humidity

Dimensiuni (W x H x D)

400 x 380 x 245 (mm)

Greutate neta

6.1 kg

Certificari

CE, FCC, KC

Culoare

Matte Dark Black

OPTIONALE & PERIFERICE

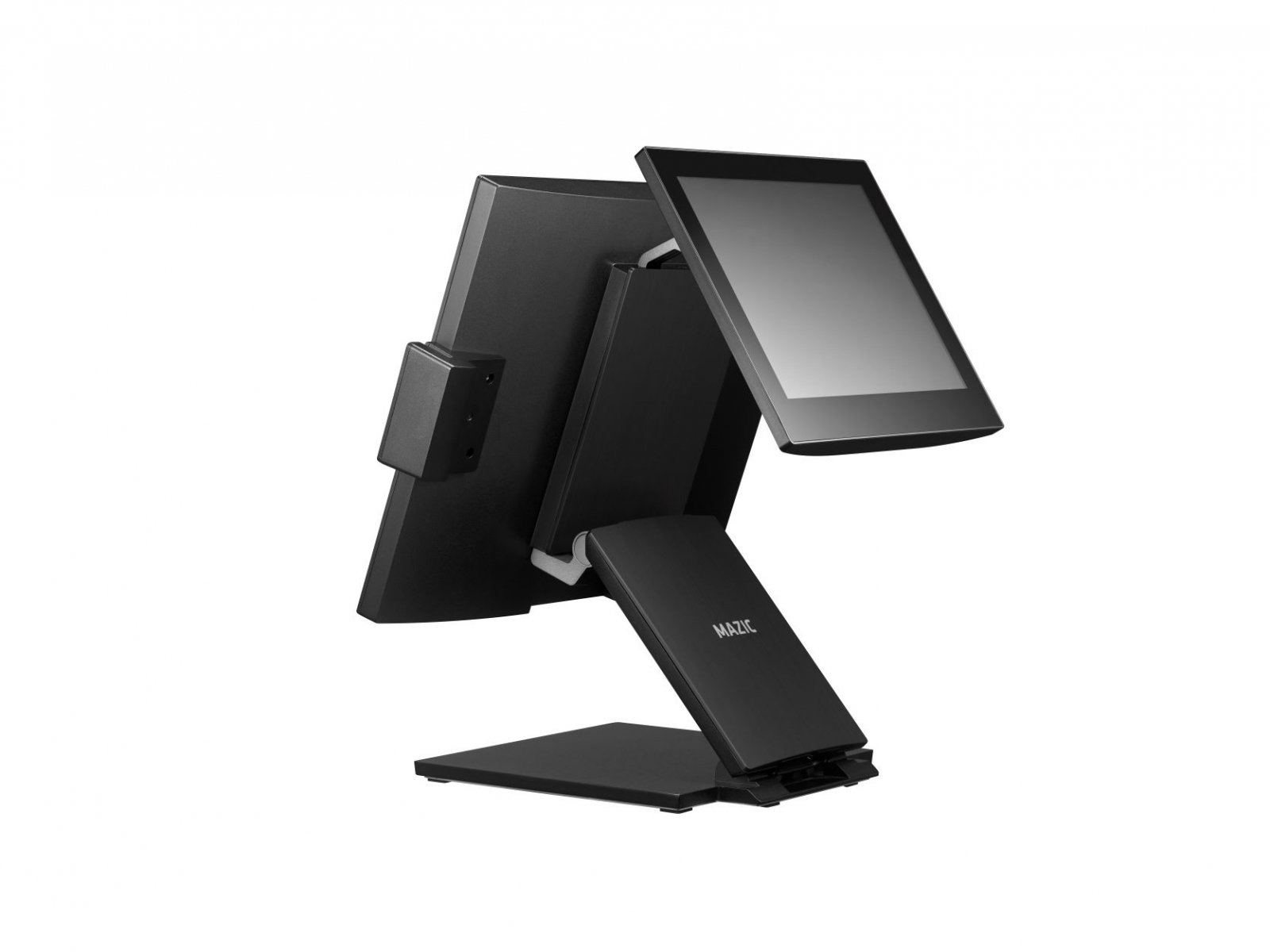

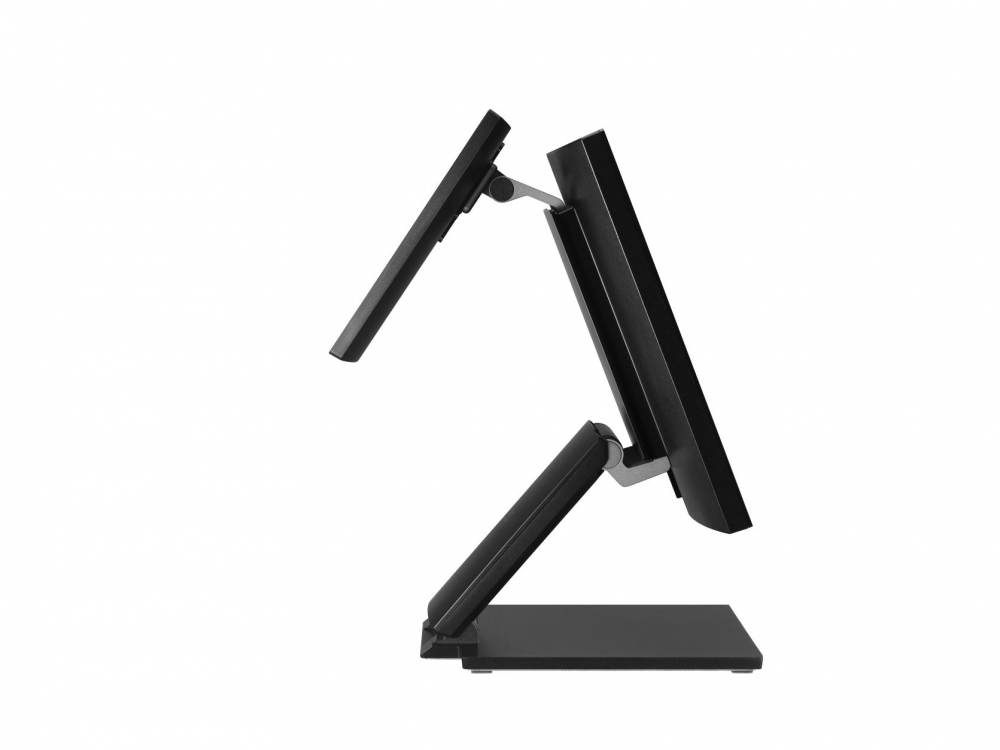

Display secundar

9.7" (1024 x 768), 13.3" (1920 x 1080) LCD Display, Optional Touchscreen

13.3" (1920 x 1080)

Afisaj client

VFD, 20 Columns x 2 Lines

I/O Expansion

Suporta I/O Expansion Box

4 x COM (2 x D-sub/COM3/COM4, 2 x RJ-45/COM5/COM6)

1 x HDMI

1 x Gigabit Ethernet, RJ-45

2 x USB 3.0

4 x USB 2.0

1 x Cash Drawer Port (RJ-11 6pins)

2 x Powered USB (12V/24V)

Capacitate

NVME M.2 128G

Cititor benzi magnetice

In conformitate cu ISO 7811, Suporta 1 & 2 & 3 Track

Cititor smart carduri

EMV Level 1, 2

Dallas

Dallas i-button Reader

Amprenta digitala

Da

Camera

5M USB Interface (Internal) (Factory Option)

Kit montare pe perete

VESA-Compatible, 100 x 100(mm)

Boxe

2 x 0.7W (Stereo) (Factory Option)

WiFi

Combo Module, M.2 (Factory Option)

Bluetooth

Combo Module, M.2 (Factory Option)
